Another painting recently came to auction that’s of Kings Weston interest; it’s a watercolour of the house and park from Penpole Point. It’s a view that’s already familiar to us through one of the most widely published and most attractive prints of the park in the early 19th Century. The artist was the impressively named Anthony Vandyke Copley Fielding (1787-1855) who visited Kings Weston in 1816. It’s not clear whether it was intentionally painted as part of a larger project, but reproduced it found its way into a Series of Picturesque Views of Noblemen’s and Gentlemen’s Seats seven years later.
the original watercolour showing the view of Kings Weston house from Penpole Point. 1816, Anthony Vandyke Copley Fielding (1787-1855). One version of the print copied from the original painting.
We’ve retold the story of the First World War Auxiliary hospital at Kings Weston before, but a new facet of hospital life has just come into our hands: A smartly designed front cover for the Kings Weston Hospital Magazine.
The front cover of the Kings Weston Hospital Magazine. June 1917
The advert for Lennards Boots and shoes on the inside of the magazine cover.
The magazine would have been published for hospital patients, probably written by the patients as part of their recuperation, and to fend off boredom. There were newspapers published by servicemen in the trenches, camps, and troopships, and others are known from other military hospitals, but this is the first known from Kings Weston. Most were replicated using simple methods, whatever was to hand, and could involve carbon paper, basic duplicating machines, or even written by hand. At Kings Weston it appears that some significant resources were available, with a coloured card cover, embossed and with a professionally produced photograph of the house pasted-on as an eye-catching centrepiece. On the inside cover an advert for Lennards Boot & Shoe Co suggests that they were one of the sponsors of the magazine.
Marked by hand, a date of June 1917 appears on the cover. The house had been turned over for hospital use by Philip Napier Miles and his wife Sybil in 1915 so would have been familiar to recovering servicemen for a couple of years. Was the magazine a one-off, or was it a regular publication? The date suggests it could have been monthly journal, or was it one-off?
There’s one more major puzzle; where is the rest of the magazine, and what did it contain? Frustratingly everything but the front cover is missing, the cover sliced off, perhaps as a souvenir. It would have been fascinating to read the contents, but no other copy is known to exist. If you know different please get in touch!
Injured troops recuperate in the care of Red Cross nurses on the garden front of Kings Weston.
We’ve often mentioned the incredible Kings Weston Book of Drawings (KWBoD), a unique collection of architectural drawings documenting the house and its construction and all dated to the first quarter of the 18th Century. The book is in the collections of the Bristol Archives and we’re reproduced drawings from it in many of our newsletters and on our website. One aspect we’ve never looked into is the internal decoration of the house as built. Many will know that the rooms of Kings Weston were all remodelled in the 1760s and later, and scant remains of the original character remain. However, inspecting the drawings gives us an insight into this lost world.
Undated draft of the chimney and mirror in the Kinsale Chamber (KWBoD)
The drawings also give us a puzzle. Whilst we can be certain about the layout and room names and uses after the 1760s, we are less certain over the earlier arrangement. There are rooms named, the Throwley Chamber, Kinsale Chamber, and Eating Parlour, that can’t be precisely located. We can assume that the Eating Parlour would have been on the principal ground floor, but wouldn’t have been in the same location as the later room that bore that name which was formed from the State Bedchamber. The description of several rooms as chambers implies they are, essentially, bedrooms, and most likely on the first floor.
Both Kinsale and Throwley chambers are named after the Southwell Family estates. Kinsale in southern Ireland was where the Southwell’s’ heralded from before Kings Weston, and Throwley Old Hall in Staffordshire came into the family through the marriage of Edward Southwell, rebuilder of the house, to Lady Elizabeth Cromwell. A further chamber is referred to in a letter from Edward Southwell in Dec 1713 when he writes ” I have almost forgot what I wrote about the two chimney pieces, but if I remember right I desired one according to the wooden model I sent, which being large was to go into the great parlour. The other I desired for a bedchamber of the common chamber size, and of the Italian moulding if you fit, to put it in the room I call Burton”; Burton was the estate of his cousin John Percival to whom the letter was written. The room names then follow a pattern of representing places of importance to the family.
Cornice of the Throwley Chamber, dated Feb 1717
The drawing for the Throwley chamber illustrates a profile of a ceiling cornice. Comparing it with a similar example at Dyrham Park house, a building with close family bonds with kings Weston, we can assume this was intended to be of timberwork. The Kinsale Chamber drawing contains more of interest. It’s a design for a fire surround and chimney breast that would have been the focal point for this bed chamber. The fireplace is 5ft 2in wide and 4ft 1in high and probably wrought in polished stone or marble. Above it are mouldings, again of timber, framing a wide mirror with cushioned edges. By the level of detail it can be assumed that the mirror was already in existence and the designs were drawn with the intention of incorporating it into the new room. Above the mirror were further cornice mouldings and panel work taking things as far as the ceiling. Again, the arrangement isn’t dissimilar from some of the interiors at Dyrham.
One of the anterooms to first floor apartments at Dyrham Park house give a good impression of how Kings Weston’s rooms may have looked.
Two drawings can be more firmly located within the house; these are fireplaces for Mr Southwell’s closet and chamber. Aside from the State Bedchamber on the ground floor this would have been the finest furnished rooms. The principal chamber in later eras was in the southern corner of the house, with an outlook over the garden to the Echo. Reviewing the plan of the house published shortly after completion this is most likely to have been intended as Southwell’s bed chamber and private rooms.
The first floor of the house was laid out as a series of apartments which could be allocated to family members or used by guests. There are three apartments on the first floor connected by common anterooms. In the later 18th Century the central anteroom overlooking the Echo Walk was called the Tapestry Room, and it’s possible this interior, with its old fashioned wall hangings, survived the 1760s refurbishments. A smaller bed chamber occupied the western corner of the house directly off the servants stair, but separate and not identifiable as a part of a suite of rooms; Aside from Mr Southwell’s chamber this is the only room shown where there is a pronounced chimney breast, so might be tentatively identified as the Kinsale chamber. The other two bedchambers on this floor had fireplaces flush with the interior wall.
The first floor layout of apartments at Kings Weston when first complete, with the KWBoD drawings located.
Each apartment consisted of a bedchamber, and two further rooms. The principal of these smaller rooms was equipped with a fireplace, whilst the lesser room was unheated; this was possibly a dressing room. The design for Mr Southwell’s closet is the most decorative of the interior drawings, and this illustrates the status the room enjoyed. The panelling here doesn’t reach the whole height of the room, instead a more intimate character is created by a lower cornice level. The fireplace is shown with ornate decoration, probably carved in wood. The drawing suggests that this incorporates wreathes of foliage framing a central panel, possibly a painting, and a crowning section of more indistinguishable decoration. Either side of this centrepiece candle sconces are fixed. The wall space above the ornamental panelling is reserved for a painting.
Undated drawing of Mr Southwell’s closet fireplace (KWBoD)
The function of the closet was to offer a private retreat for the apartment’s occupant; somewhere they could display their most important treasures and intimate effects. It was a room for display, but only to the most limited of audiences. A good example of this sort of room exists in the Cedar Closet at Tredegar house, Newport, though from about a generation earlier that Edward Southwell’s new house.
The Closet drawing has curious pricked lines on one side of the chimney breast which are not easily explained. They may be an alternative decorative scheme with carved stacked quoins mimicking an architectural detail in stone, or they could intimate shelving concealed behind the panelling.
The Cedar Closet, Tredegar House, Newport dates to around 1670, but gives an impression of the scale and appearance of Mr Southwell’s closet room
Mr Southwell’s Chamber also has its chimneypiece drawn. This Is a fairly straightforward design with timber panelling up the chimney breast and terminating against the ceiling with a boldly projecting cornice. The focus of this feature was likely to be a painting hung over the narrow mantelpiece. Between this and the stone fire surround there’s a wide panel picked out in grey ink, and with four quite substantial fixings; was this for another painting, or could it have been for a carved stone plaque? The vast scale of the proposed chimney breast is only revealed when a figure is added to the same scale, as we’ve illustrated here.
Chimney intended for Mr Southwell’s Chamber with figure added for scale.
The last drawing, or drawings, we’ll look at here are of another fire surround, to be “wrought out of the ash colour marble”. A surround in similar grey marble still exists on the second floor. The two drawings clearly show the same fire surround and one is dated 13th Feb 1718. This shows us that, although Southwell moved in with his new wife in 1716, that there were still significant fitting out works being undertaken on rooms. The same dated drawing describes the drawing as a “coppy of Mrs le Grand’s draught of a chimney piece”.
Mrs Helena Le Grand was Edward Southwell’s older sister. He had delegated the setting up of the house to her before he moved in when she was “fully employed in transposing and setting the furniture, pictures and cheney”. The second drawing showing the fireplace may then be her own drawing from which a second version was taken and annotated. Was she more involved in the design of the house, or its interiors than we’ve previously been aware?
The two drawings for a chimneypiece of ash colored marble, the original on the left with the copy on the right dated Feb 1718.
One thing that this short series of drawings show is that the first floor interiors were very traditional, not having the same architectural drama of Sir John Vanbrugh’s exteriors, Saloon or stair hall. The layout and appearance would not have been unusual in a house from thirty years previous like Tredegar. It’s unlikely we’ll ever know how the State rooms on the ground floor were decorated, but the first floor chambers were not ostentatious and would have relied largely on their furnishings for any display of wealth or status.
Anyone committing to build themselves a house no doubt puts a good deal of thought and research into the design beforehand, and it was no different for Edward Southwell when he was planning his new home at Kings Weston. Although he had appointed the Queen’s architect, Comptroller of the Royal Works, Sir John Vanbrugh to design the building Southwell would have been keen to make sure the designs, and the cost of the project, suited his needs. In appointing Vanbrugh he had already committed himself to the most modern and innovative architecture of the day. It is difficult now to picture quite how revolutionary the architecture was. For comparison, most of the grand houses around Bristol were still largely Tudor structures. At the time, nationally there were relatively few houses that adopted the newly fashionable Classical style we might now associate with grand stately homes. The revolution in style had only really taken hold in the decades after the Restoration of Charles II to the throne in 1660, and took time to establish after the privations of the Civil War and Commonwealth era. If Southwell was to get inspiration for his new house he had a shallow pool from which to drink.
Sir John Vanbrugh. Painting in the National Portrait Gallery.
Seemingly with little plan for what to replace it with Southwell began demolition of his old family home in Spring 1711. By December the same year his sister, Helena le Grand, lamented to family friend John Perceval
“we expect my brother in town the end of the week after filling his belly with the ruins of Kingsweston for I can call it no otherwise.”
Still, in March the following year, Southwell himself confessed to Perceval “Kings Weston house is almost down though I don’t know what to build in the room” – an extraordinary lack of foresight! In the same letter he notes that he is making his gardens there “very fine” though the pressing priority of the house designs continued to elude him.
On April 25th Southwell set off from his London house, Spring Gardens, for ten days at Kings Weston, with an intention to set out the new foundations for the house. Rather than hurry to the building site an itinerary had been devised that would take in many of the most modern house architecture between the Capital and Bristol. Southwell’s own travel journals record the visits made on the four day trip and each short entry is accompanied by very basic notes on the incidence of garden features, architecture and stables. This was a study trip to get inspiration, and perhaps some housebuilding advice.
Beginning on the 25th April Duke Schomberg’s – Uxbridge (Hillingdon House) Sr Roger Hill’s – Denham Place, Buckinghamshire Sr Richard Temple – Stowe, Buckinghamshire Mr Boyle’s – Middleton Stoney, Oxfordshire D. of Shrewsbury – Heythrop Park, Oxfordshire Cornbury Park, Oxfordshire Dodington, (Gloucestershire) This map shows all the stops on the route.
Today many of these buildings are fairly obscure, if not forgotten. Some have been entirely rebuilt or altered, but at the time they represented a good selection of the modern architectural or landscaping works, utilising the most current styles, construction techniques, and building technology.
Painting of Denham Place, its gardens, and estate buildings, circa 1700. Yale Centre for British Art. cropped to image
The grand staircase at Denham Place, circa 1701
Hillingdon House is not supposed to have been commenced until 1717, so what Southwell saw there is unknown. Denham Place had been completed in 1701 and was surrounded by fine formal garden compartments, including a long ornamental canal, that set the house in the centre of a lavish pleasure ground. The ornamental garden buildings, gates, and statues added opulence to the house itself, which was built of brick. Well-mannered with good proportions it was in a fairly staid style, perhaps even out of date for its time. Inside, a grand central staircase was one of the finest features along with other finely fitted out rooms; perhaps these were inspiration for what Kings Weston could offer.
Stowe house and gardens are now internationally known, and Vanbrugh later worked to embellish its gardens with ornamental buildings, but Southwell will have seen an earlier, less extravagant, house. Built in 1676 it was similar to Denham in its general plan and style with ‘H’ plan and hipped roofs. Both these houses had balustrade rooftop terraces and architecturally prominent chimneys. Architecturally they were fairly derivative, following almost standardised patterns after Burlington house, London, a building, amongst other fashionable examples, that set the mould for house design at the start to the Restoration era.
Stowe House in about 1715, before it was redeveloped on a colossal scale.
Middleton Stoney was built around 1710. Unfortunately it was completely rebuilt in the 1750s and no earlier depiction has been located to know what he saw there.
Heythrop Park was the most architecturally ambitious building visited. Begun in 1706 it was nearing completion when Southwell visited. Not only would it have given him an insight into the modern Baroque style, but he could have sought direct advice from builders and other people involved with the construction. Applied columns in the Corinthian style and ‘Giant Order’, robust window keystones, and an emphasis on the main entrance with its portico have some parallels with what happened at Kings Weston. The unique interiors of this house were lost in a fire in the 1830s.
South east front of Heythrop Park, Oxfordshire, by Thomas Archer, 1706- circa 1718.
Cornbury, though much earlier, shared similar features to Heythrop, but is more restrained in its exuberance. Here, on the south east wing, the Portico is engaged with the façade, with bold projections at the cornice. Imagining the frontage without the two end bays, and a silhouette enriched by a rooftop arcade, this building has stronger parallels with Kings Weston than Heythrop. The south-east wing was designed in 1666 by Hugh May, and architect who Vanbrugh admired for the work he’d done at Windsor Castle. The interiors here have been heavily altered, but there was once a double height hall here whose over-scaled fireplace with a Vanbrughn boldness survives.
South east wing of Heythrop house, Oxfordshire, by Hugh May, 1666.
Most curiously the diversion to Heythrop diverted right around Blenheim Palace, Vanbrugh’s most famous work, that was then in the process of construction. Considering Southwell had hired him as architect an inspection of the works might be expected it to have been an essential highlight. It’s assumed therefore that Southwell had visited at least once before and was already familiar with the project. How Heythrop, or for that matter any of the buildings on the itinerary, were selected can only be speculated upon.
Like Middleton Stoney, Dodington Park was entirely rebuilt in the late 18th century, and little can be ascertained on why it was included on the itinerary. Dyrham Park nearby, finished in around 1711, would already have been very familiar to Southwell, who was close to the Blathwayt family and would marry into it in 1716.
Further research is required to know whether Vanbrugh accompanied his patron on this journey. Was he there directing Southwell to features he thought fitting for Kings Weston, or did he have some influence on the selection of properties to visit? Was Vanbrugh present when Kings Weston was set out and begun?
You might expect that by the time Southwell reached Kings Weston, on the 29th April, and after so much inspiration, he might have at last decided on a new design. Indeed he writes that already “upwards of 60 men preparing stones and digging the foundation of the new house”; but still, in the closing days of May he wrote “I am full of a great anxiety and trouble as to mine (house improvements) which arises from the uncertainty of setting out right, and to this hour my model, I cannot say, is fixed; though it may be and will be by the next week.” Clearly April’s ambition to set out the new building had failed, the study trip perhaps even adding confusion to the process.
Architectural drawing of the main front of Kings Weston House, from the office of Sir John Vanbrugh. (Victoria & Albert Museum)
This indecision appears to be Southwell’s own, and Vanbrugh is not mentioned at all. The architect must have been working closely with his client on proposals, so whether his designs were rejected and revised, or whether the fault was his, and he’d been slow in furnishing his client with drawings is not known. There are no significant variations in the general design of the new mansion in existing drawings. Eventually plans for the house were agreed, and on 16th of June work on Vanbrugh’s designs for Kings Weston house was begun. In the context of most of the grand houses of its day, particularly in the Bristol Region, it was still a pretty revolutionary piece of architecture. Where Vanbrugh deviates from the rigours of classical architecture with the main front, and experiments with robust modelling of the other three fronts, Kings Weston is particularly unique.
We know that the inevitable loss of the lime trees on the ancient avenue has come as a great shock and sadness on many people in the park, and so many people have spoken to us about it. We are looking to prioritise how we can replace the lost trees as soon as possible, but this won’t be at least until the next planting season next winter. This will give us plenty of time to secure the funding we’ll need to support this.

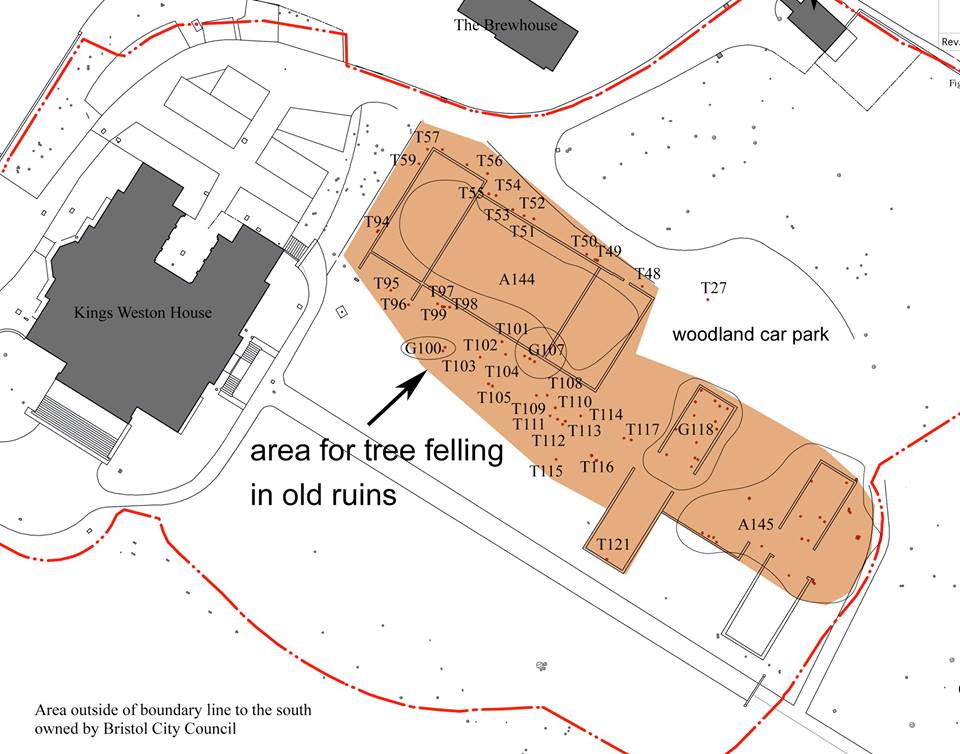

However, there are many other trees in the park that we are less sorry to lose, and a recent application to fell trees within the Conservation Area has been submitted for planning. The application from Kings Weston house marks the next stage in the restoration of the grounds. Norman Routledge, the owner of the house and the area of grounds immediately around it, is keen to repair and enhance the grounds and one priority that everyone has agreed on is improving the current woodland car park.
Undersized for use by both the house and park visitors it’s led to vehicles damaging the park and paths. The new proposals will see the establishment of a better designed, and more appropriate car park that will tackle the problematic issue of some of the brick ruins around the house. As a first stage a planning application has come forward for the felling of many of the poor-quality sycamore and ash that currently engulf the ruins and are obstructing views of the Echo. These trees have grown up entirely unmanaged only since the 1950s and the area is identified in the City’s Conservation Management Plan for this work.
A full copy of the application can be found on the City’s Planning website (search for ref: 16/00359/VC) http://planningonline.bristol.gov.uk/online-appl…/search.do…
It’s accompanied by a professional tree survey that’s reassured us that there are no trees of good quality of high habitat value being proposed for felling. We are hoping that the council will apply policy to ensure that trees felled will be replaced with higher quality specimens in the next phase of the proposals, and as such we are minded to support this proposal.
If you have any thoughts please comment on the planning application.
